1V1 (1)
Application:
Thread grinding.
Gear processing

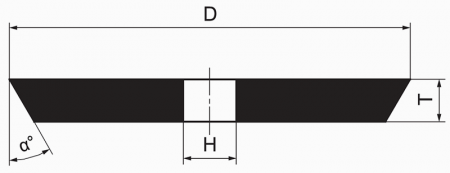

Specifications
| D | T | H | αº |
|---|---|---|---|
| 25 | 8 | 8 | 15°; 30°; 45° |
| 30 | 5 | 10 | 15°; 30°; 45° |
| 35 | 8 | 10 | 15°; 30°; 45° |
| 50 | 8 | 10 | 15°; 30°; 45° |
| 60 | 8 | 20 | 15°; 30°; 45° |
| 70 | 8 | 20 | 15°; 30°; 45° |
Gear processing
| D | T | H | αº |
|---|---|---|---|
| 25 | 8 | 8 | 15°; 30°; 45° |
| 30 | 5 | 10 | 15°; 30°; 45° |
| 35 | 8 | 10 | 15°; 30°; 45° |
| 50 | 8 | 10 | 15°; 30°; 45° |
| 60 | 8 | 20 | 15°; 30°; 45° |
| 70 | 8 | 20 | 15°; 30°; 45° |
